Rails

Picture 1: aluminium rail Picture 2: bolt secured in rail

Aluminium rails

Various rails for the transportation market.

These aluminium profiles are used to give vehicles flexibility in flooring layout. Each rail has a track where seats and various tie-downs can be securely fitted in the vehicle. In other words, it's possible to move, add or remove equipment as needed.

As an alternative to rails, we also have our full aluminium flooring solution Spacefloor.

Low profile rail
Easy installation that can be recessed into the vehicle floor for a neat finish, with a height above the finishing floor of only 4 mm. Low profile rail requires M8 fasteners, fixed into countersunk holes at 101.6 mm intervals for a flush head finish.

Learn more

Surface rail
Designed for vehicles where flush-fitted rails are not possible, Surface rail is quick and easy to install into most vehicle floors, with a finished height of only 14 mm above the floor. Surface rail is a popular solution for 3rd point passenger restraint fitment (cant rail).

Learn more

Heavy duty rail
Heavy duty rail is specially designed to increase the structural integrity of the vehicle floor strength, it is the ideal choice for coach built conversions. The heavy duty rail is designed to be used with M8 steel bolt and is available in four different lengths. To further improve the versatility of the floor configuration, low profile rail can be fitted into heavy duty rails's side channels.

Learn more

Accessories

M8 fastener

M8 fasteners
Mandatory on floor installations meeting M1 loads using Low Profile and Surface rails. Available in sets of 10 or 100.

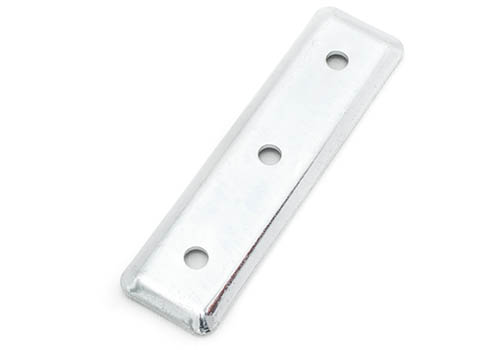

Underfloor spreader plate

Underfloor spreader plate
Useful for angled floor sections or where fitting a standard washer is difficult.

3 different end caps for low profile rails

End caps
Provide a neat finish to the ends of fitted low profile rails. Available in an aluminium finish to match the rail or in yellow or grey plastic finish for a cost-effective solution.

Rail jig

Rail jig
Ensures perfect alignment during installation, avoiding fitment issues.

Rail trim

Rail trim
Protects the tracking from damage and debris. Use with any rail. It can easily slide into the rail central channel and can be cut to size.

Surface rail requires M8 fasteners, fixed into countersunk holes at 101.6mm intervals for a flush head finish. A 3.66m length of surface rail requires 37 fasteners.

Accessories

M8 fastener

M8 fasteners
Mandatory on floor installations meeting M1 loads using Low Profile and Surface rails. Available in sets of 10 or 100.

Underfloor spreader plate

Underfloor spreader plate
Useful for angled floor sections or where fitting a standard washer is difficult.

3 different end caps for surface rails

End caps
Provide a neat finish to the ends of fitted surface rails. Available in an aluminium finish to match the rail or in yellow or grey plastic finish for a cost-effective solution.

Rail jig

Rail jig
Ensures perfect alignment during installation, avoiding fitment issues.

Rail trim

Rail trim
Protects the tracking from damage and debris. Use with any rail. It can easily slide into the rail central channel and can be cut to size.

Heavy duty rail
Heavy duty rail is specially designed to increase the structural integrity of the vehicle floor strength, it is the ideal choice for coach-built conversions. The heavy duty rail is designed to be used with M8 steel bolt.

Heavy Duty Rail offers greater flexibility with fewer fixing points. Fixings can be positioned at up to 600mm intervals to match vehicle frame chassis and reduce installation cost.

Short heavy duty rail combined with wood flooring

Accessories

M8 fastener

M8 fasteners
Mandatory on floor installations meeting M1 loads using Low Profile and Surface rails. Available in sets of 10 or 100.

Underfloor spreader plate

Underfloor spreader plate
Useful for angled floor sections or where fitting a standard washer is difficult.

Rail jig

Rail jig
Ensures perfect alignment during installation, avoiding fitment issues.

Rail trim

Rail trim
Protects the tracking from damage and debris. Use with any rail. It can easily slide into the rail central channel and can be cut to size.

Accessories

3 different end caps for low profile rails

End caps
Provide a neat finish to the ends of fitted low profile rails. Available in an aluminium finish to match the rail or in yellow or grey plastic finish for a cost-effective solution.

3 different end caps for surface rails

End caps
Provide a neat finish to the ends of fitted surface rails. Available in an aluminium finish to match the rail or in yellow or grey plastic finish for a cost-effective solution.

M8 fastener

M8 fasteners
Mandatory on floor installations meeting M1 loads using Low Profile and Surface rails. Available in sets of 10 or 100.

Underfloor spreader plate

Underfloor spreader plate
Useful for angled floor sections or where fitting a standard washer is difficult.

Rail pocket

Rail pocket
Pocket with a short track inside. Fitted directly to the vehicle floor. Designed for WAVs. Available with and without cover.

Rail jig

Rail jig
Ensures perfect alignment during installation, avoiding fitment issues.

Rail trim

Rail trim
Protects the tracking from damage and debris. Use with any rail. It can easily slide into the rail central channel and can be cut to size.

For more information and sales enquiries please contact us.
